小圖數值
| 型號 | 測試容量 Kgf / N / lbf |
長度 mm / in |
螺牙A | 螺牙B | |
|---|---|---|---|---|---|
 |
G1051 | 50/500/100 | 14.0/0.55 | #4-40M | #10-32M |
 |
G1050 | 50 / 500 / 100 | 19.1 / 0.75 | #10-32F | #4-40M |
 |
G1039 | 100 / 1,000 / 200 | 19.1 / 0.75 | #10-32F | #10-32F |
 |
G1030 | 100 / 1,000 / 200 | 12.7 / 0.50 | #10-32F | 5/16-18M |
 |
G1067 | 100 / 1,000 / 200 | 19.1 / 0.75 | #10-32F | 1/2-20M |
 |
G1048 | 100 / 1,000 / 200 | 19.1 / 0.75 | #10-32F | M4M |
 |
G1057 | 100 / 1,000 / 200 | 19.1 / 0.75 | #10-32F | M6F |
 |
G1054 | 100 / 1,000 / 200 | 19.1 / 0.75 | #10-32F | M6M |
 |
G1060 | 100 / 1,000 / 200 | 19.1 / 0.75 | #10-32M | #10-32M |
 |
G1063 | 100 / 1,000 / 200 | 33.0 / 1.30 | #10-32M | 5/16-18F |
 |
G1047 | 100 / 1,000 / 200 | 19.1 / 0.75 | #10-32M | M4F |
 |
G1069 | 250 / 2,500 / 500 | 31.8 / 1.25 | 5/16-18F | 1/4-28M |
 |
G1037 | 250 / 2,500 / 500 | 25.4 / 1.00 | 5/16-18F | 5/16-18F |
 |
G1059 | 250 / 2,500 / 500 | 28.7 / 1.13 | 5/16-18F | 1/2-20F |
 |
G1066 | 250 / 2,500 / 500 | 19.1 / 0.75 | 5/16-18F | 1/2-20M |
 |
G1049 | 250 / 2,500 / 500 | 31.8 / 1.25 | 5/16-18F | M6M |
 |
G1040 | 250 / 2,500 / 500 | 23.4 / 0.92 | 5/16-18M | 5/16-18M |
 |
G1091 | 500 / 5,000 / 1,000 | 33.0 / 1.30 | 1/2-20F | 1/2-20F |
 |
G1041 | 250 / 2,500 / 500 | 26.9 / 1.06 | 1/2-20M | 5/16-18M |
 |
G1044 | 轉接板1/2-20F: 相容任何帶有矩陣式螺紋孔底板的測試台，如TSF、ESM303等。 | |||
 |
G1113 | 50 / 500 / 100 | 19.1 / 0.75 | M3M | #4-40F |
 |
AC1082 | 50 / 500 / 100 | 19.1 / 0.75 | #10-32M | #10-32M |
 |
AC1082-1 | 250 / 2,500 / 500 | 25.4 / 1.00 | 5/16-18M | 5/16-18M |
 |
AC1082-2 | 900 / 9,000 / 2,000 | 38.1 / 1.50 | 1/2-20M | 1/2-20M |
訂購資訊
| 型號 | 描述 |
|---|---|

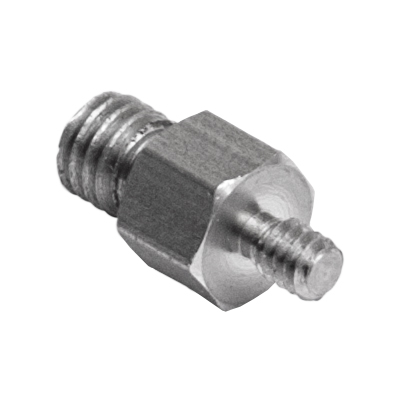

| G1051 | 螺牙轉接器: #4-40M → #10-32M |
| G1050 | 螺牙轉接器: #4-40M → #10-32F |

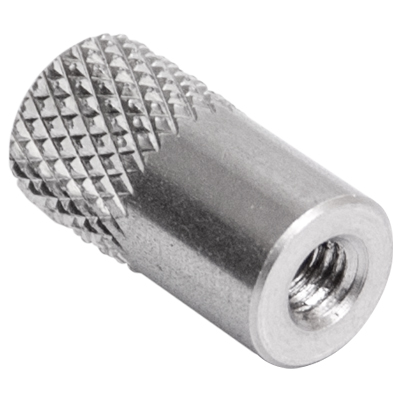

| G1039 | 聯結器: #10-32F/F |
| G1030 | 螺牙轉接器: 5/16-18M → #10-32F |
| G1067 | 螺牙轉接器: 1/2-20M → #10-32F |
| G1048 | 螺牙轉接器: M4M → #10-32F |
| G1057 | 螺牙轉接器: M6F → #10-32F |
| G1054 | 螺牙轉接器: #10-32F → M6M |
| G1060 | 螺牙轉接器: #10-32M → #10-32M |
| G1063 | 螺牙轉接器: #10-32M → 5/16-18F |
| G1047 | 螺牙轉接器: #10-32M → M4F |
| G1069 | 螺牙轉接器: 5/16-18F → 1/4-28M |
| G1037 | 聯結器: 5/16-18F/F |
| G1059 | 螺牙轉接器: 5/16-18F → 1/2-20F |
| G1066 | 螺牙轉接器: 5/16-18F → 1/2-20M |
| G1049 | 螺牙轉接器: M6M → 5/16-18F |
| G1040 | 螺牙轉接器: 5/16-18M → 5/16-18M |

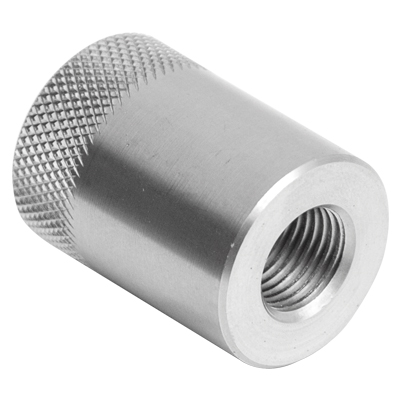

| G1091 | 聯結器: 1/2-20F/F |
| G1041 | 螺牙轉接器: 5/16-18M → 1/2-20M |

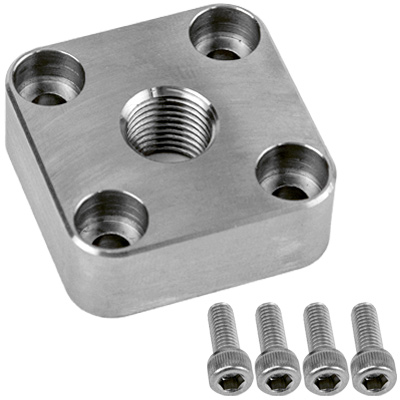

| G1044 | 轉接板1/2-20F: 相容任何帶有矩陣式螺紋孔底板的測試台，如TSF、ESM303等。 |
| G1113 | 螺牙轉接器: M3M → #4-40F |

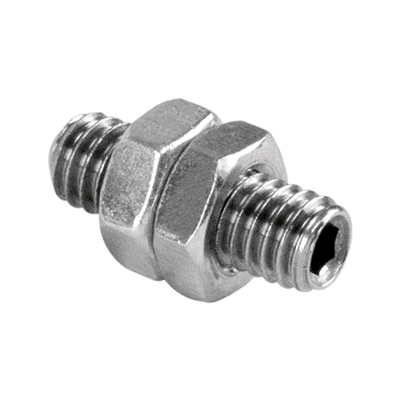

| AC1082 | #10-32 螺栓與六角螺帽。 |
| AC1082-1 | 5/16-18螺栓與六角螺帽。 |

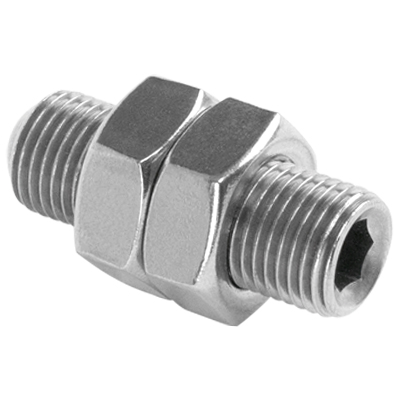

| AC1082-2 | 1/2-20螺栓與六角螺帽。 |
